Types Of Slope Failure





Imagine driving along a scenic highway, surrounded by lush greenery and towering mountains.

image : Driving on mountain road



Suddenly, the road ahead disappears, covered in a mess of dirt and rocks. This isn't a scene from a disaster movie; it's a reality faced by many due to slope failures.



image : Landslide on road



So, what are these slopes?

Slopes are like the paths that connect different heights—think of natural hills and mountains, or even man-made structures like highway embankments and canal banks.



image : slope



These slopes can be a bit tricky because they tend to move around to find a more stable spot. When they do, it's called a slope failure, and that's when things get messy, like roads getting blocked.

Slope failure might not be a term you hear every day, but it's a serious issue in geotechnical engineering. So lets look into the types of slope failure.



Slopes can be classified into different categories based on their geometry, material composition, formation process, or stability. However, based on their geometry, slopes are primarily classified into two categories:

  1. Infinite slopes

  2. Finite slopes.



Infinite Slopes

Infinite is only a theoretical concept. In the real world which itself is finite, nothing is truly infinite. But in geotechnical engineering, we use the idea of an 'infinite slope' to make our calculations easier.



image : Infinite Slope



In practice, this means the slope is super long and consistent compared to the depth of soil layer. Think of natural hillsides or massive embankments where the slope stretches way farther than the depth of the soil.



Finite Slopes

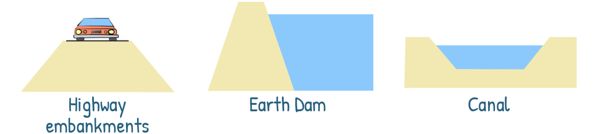

Then, there are finite slopes, which are way more common than those never-ending infinite ones. These slopes connect land at one elevation to land that is at another elevation. You'll find them everywhere in nature and in man-made structures too. Think of the slopes alongside highways or railway embankments, the sides of canals or the slopes of an earth dam. These are all examples of finite slopes.



image : Finite Slopes



The failure of a slope or soil mass occurs when a large mass of soil slides with respect to the remaining mass. The main forces causing this instability are gravity and seepage. In earthquake-prone areas, seismic activity can also play a big role. These forces, known as actuating forces, create shearing stresses throughout the soil.

It's all about the balance between these forces and the soil's resistance. If the shearing resistance on any potential failure surface isn't strong enough to counter the shearing stress, the soil will fail, leading to a mass movement along a slip surface. This resistance comes mainly from the soil's shear strength, along with other natural factors like plant roots.

In simpler words, when the forces pushing the soil down are stronger than the soil's ability to hold itself together—what we call shear strength—the slope fails.



image : Slope Forces Balance



Think of it like holding a heavy bag; if it's too heavy, your grip slips, and down it goes.



Several things can disrupt this balance:

  • Water Weight: Too much water can make the soil heavier and harder to hold in place.

  • Extra Loads: Adding more weight on top of the soil, like buildings or vehicles, can stress it out.

  • Seepage Pressure: Water moving through the soil can create pressure, pushing it around.

  • Weakened Soil: If the soil gets too wet or worn down by weather, it loses its strength and can't hold its shape.

All these factors can make the soil weak and slide down, causing a slope failure.



There are many types of slope failures:

  1. Rotational Failure

  2. Translational Failure

  3. Compound Failure

  4. Wedge Failure

  5. Falls

  6. Toppling Failure

  7. Flow Failure

  8. Creep

  9. lateral spreading




Let's dive into a few of them which focus more on the mechanics and characteristics of the soil movement.


Rotational Failure

This type of failure is common in finite slopes. Rotational failure happens when a chunk of soil rotates along a slip surface, moving downward and outward. As the soil slides, it rotates backward, leaving a concave scar at the top and a bulging toe at the bottom.

This slip surface is usually circular in homogeneous soil conditions and can be non-circular in non-homogeneous soils.



image : Rotational Failure



This type of failure often occurs on steep slopes that are over-saturated with water, where excess pore water pressure weakens the soil's shear strength. Engineers frequently analyse these using the method of slices.

Rotational failures can be further divided into three categories:

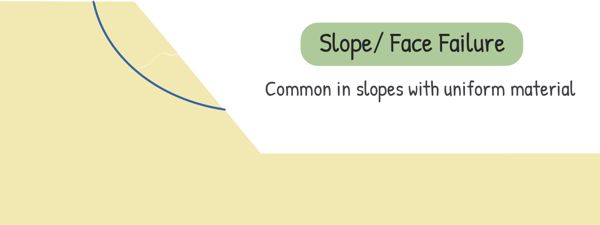

a) Slope or Face Failure: This happens when the failure surface cuts through the sloped section or face of the slope. It's like a slice through the middle, causing the upper part to slide down. It is common in slopes with uniform material properties



image : Face failure

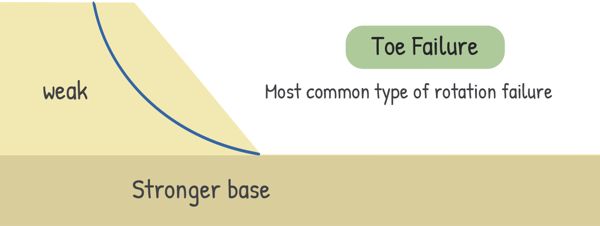

b) Toe Failure: Here, the failure happens along a surface that passes through the toe of the slope. It often occurs in slopes with a stronger base but weaker upper layers. This is the most common type of rotational failure.



image : Toe Failure

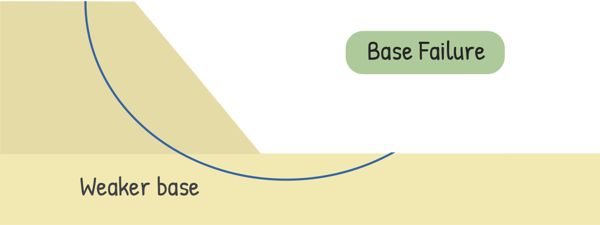

c) Base Failure: In this case, the failure surface dips below the toe of the slope. This usually happens when there's a weak layer of soil or rock underneath, causing the entire slope to collapse from the bottom up.



image : Base Failure





Translational Failure

These types of failures are common in infinite slopes. This type of failure happens when a mass of soil slides parallel to the slope surface, maintaining a consistent depth throughout.



image : Translational Slope



The depth is relatively shallow compared to the length of the slope, and the failure surface remains flat. While it may appear curved in this illustration, in reality, the shallow depth often makes the curve less noticeable at the surface level. This failure is common in slopes with uniform materials and where a thin layer of soil sits on top of rigid bedrock.



Compound Failure

Compound failure is a mix of both rotational and translational failures. It occurs when the failure surface is not purely curved, like in rotational failure or purely flat, like in translational failure, but instead incorporates elements of both.



image : Compound Failure



The upper portion of the slope may fail in a rotational manner, where the material moves along a curved surface. While The lower portion may fail in a translational manner, where the material slides along a more or less horizontal or flat surface. This combination often happens in slopes where different layers of material with varying strengths or properties are present.

This type of failure is observed in more complex slope conditions, where the failure is influenced by both the geometry of the slope and the material characteristics.



Wedge Failure

A wedge failure, also known as plane or block failure, happens when distinct blocks or wedges of soil become separated and slide along an inclined plane. This type of failure shares similarities with translational failure.



image : Wedge Failure



Unlike translational failures, which typically happen in infinite slopes, wedge failures can occur in finite slopes made of two different materials or in homogeneous slopes with cracks, fissures, joints, or other weak planes. These weaknesses create the conditions for the wedge-shaped block to slide out.


Falls

Falls occur when rocks suddenly detach and drop due to weathering, erosion, or cracks in the rock. This abrupt movement is often triggered by the presence of discontinuities like joints and fractures.



Image : Falls Failure



Toppling Failure:

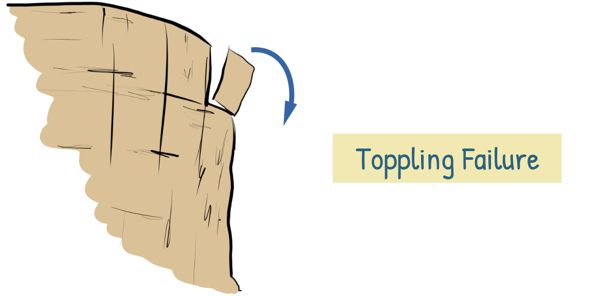

Toppling failure occurs when blocks of rock rotate forward and fall due to gravity. This typically happens on steep slopes with vertical cracks or discontinuities, causing the rock to tilt and eventually topple over.



image : Toppling Failure





Flows:

Flows occur when soil or debris moves downslope like a viscous fluid, often triggered by heavy rainfall or rapid snowmelt, leading to a slow but continuous movement.



image : Flows Failure





Creep:

Creep is a slow, continuous downward movement of soil or rock due to gravity, happening gradually over time without a distinct failure surface.



Understanding the different types of slope failures—from rotational and translational to more complex ones like compound and wedge failures—is crucial in geotechnical engineering. Each type has its unique characteristics and causes, whether it's the sudden drop of rocks in falls, the slow movement of soil in creep, or the fluid-like motion in flows. By recognizing these failures, engineers can better analyze and mitigate risks, ensuring the stability and safety of both natural and man-made slopes. So, whether you're dealing with a steep hillside or a carefully constructed embankment, knowing your slope failures can make all the difference.
